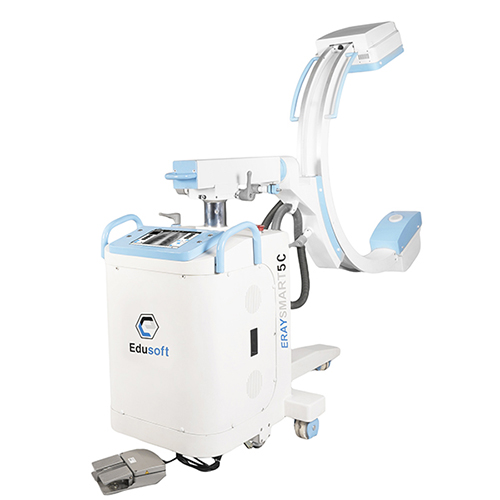

Eco Digital Mobile C-Arm ERAY SMART 5C

Price 2309523.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Eco Digital Mobile C-Arm ERAY SMART 5C Specification

Warranty
1 year

Portable
Yes

Use
hospital

Frequency
50 Hertz (HZ)

Product Type
ERAY SMART 5C

Color
White

Display Type
LED Display

Feature
Good Quality

Condition
New

Wall Mounted
No

Weight
3.5 Kilograms (kg)

Eco Digital Mobile C-Arm ERAY SMART 5C Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
15 Days

Packaging Details
VERY GOOD PACKAGING

Main Domestic Market
All India

About Eco Digital Mobile C-Arm ERAY SMART 5C

ERAY SMART 5C

Edusoft Healthcares Mobile C-Arms are designed for multidisciplinary use, delivering exceptional image quality at the lowest possible radiation dose. These surgical C-Arms offer unique features that enhance ease of use, versatility, and efficiency. Their ergonomic design simplifies clinical workflow in operating rooms, making them ideal for applications in orthopedics, trauma, neurosurgery, spine surgery, gastroenterology, urology, etc.

X-RAY GENERTOR	MODEL	ERAY SMART 5C
GENERATOR TYPE	High Frequency Technology
POWER OUTPUT	5kW
mAs RANGE	0.2mAs-125mAs
CONTINUOUS FLUROSCOPY MODE	VOLTAGE RANGE	40kV-110kV
mA RANGE	0.2mA-10mA
PULSE FLUROSCOPY MODE	VOLTAGE RANGE	40kV-110kV
mA RANGE	0.2mA-25mA
DIGITAL RADIOGRAPHY MODE	VOLTAGE RANGE	40kV-125kV
mA RANGE	1mA-25mA
X-RAY TUBE	TYPE	Stationary Anode
FOCAL POINT	0.6/1.8 mm
COLLIMATOR	TYPE	Rectngular Collimator
C-ARM STRUCTURE	ORBITAL ROTATION	-33 to +117
LATERAL ROTATION	+180
VERTICAL TRAVEL	40Omm
HORIZONTAL TRAVEL	20Omm
WIG/WAG RANGE	+15
FLAT PANEL DETECTOR	TECHNOLOGY	Amorphous Silicon (a-Si) with Csl
SIZE	g.. glT
EFFECTIVE IMAGING AREA	236.5mm X 236.5mm
MATRIX SIZE	1024X1024 px
A/D CONVERSION	16 bit
PIXEL SIZE	l54pm
SPATIAL RESOLUTION	2 ip/mm
MONITOR	SIZE	27Monitor or 19Monitor (Optional)
RESOLUTION	128OX1024
SUPPORT	Multi-Touch
HORIZONTAL ROTATION ANGLE	360
