Patient Monitor

Name: Patient Monitor
Brand: Kashaf HealthCare
Price: 15750.0 INR
Availability: InStock

Price 15750.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Patient Monitor Specification

Humidity Range
15% - 90% (non-condensing)

Application
Intensive Care, Emergency Room, Hospitals, Clinics

Weight
3.5 kg

Dimension (L*W*H)
305 mm x 170 mm x 290 mm

Power
AC 100~240V, 50/60 Hz

Automation Grade
Automatic

Function
Patient Vital Monitoring, Alarm Notification, Data Storage

Height
290 mm

Product Type
Patient Monitor

Phase
Single Phase

Accuracy
NIBP: 5 mmHg; SpO2: 2%

Treatment Type
Non-Invasive Monitoring

Shape
Rectangular

Properties
Multi-parameter, Portable, Alarm System, Trend Storage

Frequency
50/60 Hz

Temperature Range
5C to 40C (Operation); -20C to 60C (Storage)

Display Type
TFT LCD Digital Display

Storage Capacity
Full Disclosure Trend Storage up to 120 hours

Material
Plastic, Metal (ABS + Steel Components)

Color Code
White with Blue Accents

Suitable For
Adult, Pediatric, Neonatal

Use
Vital Signs Monitoring (ECG, SPO2, NIBP, TEMP, RESP, Pulse Rate)

Power Source
AC Adapter, Rechargeable Battery

Voltage
100-240 V

Display
12.1 inch High Resolution Color TFT Screen

NIBP Measurement Range
Systolic: 40-250 mmHg, Diastolic: 10-200 mmHg

Languages Supported
Multilingual user interface

SPO2 Measurement
Range: 0-100%

Printer
Built-in (optional)

Battery Type
Rechargeable Li-ion, Up to 4 hours of continuous operation

Respiratory Rate Range
0-120 rpm

Alarm System
Visual and Audible, Fully Adjustable

ECG Lead Modes
3-lead or 5-lead selectable

Mounting
Bedside, Portable Handle

Data Ports
USB, LAN

Patient Monitor Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
15 Days

About Patient Monitor

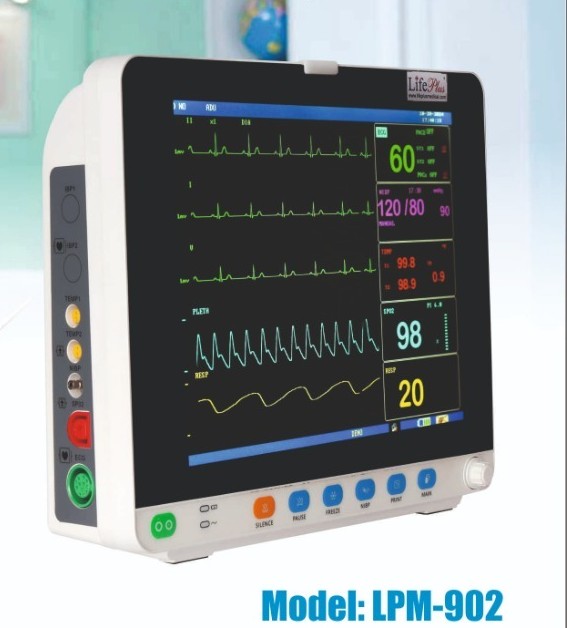

The LifePlus Patient Monitor LPM-902 is a 5-parameter, 12.1-inch color LED monitor designed for real-time tracking of critical vitals (ECG, SpO, NIBP, Respiration, Temp, PR) in hospitals, ICUs, and transport.It features advanced alarms, 168-hour data storage, and arrhythmia/ST segment analysis, ensuring high-precision monitoring for adults, pediatric, and neonatal patients.
Key Features and Technical Specifications:

Display: 12.1-inch high-resolution LED display with multi-waveform and large-font views.
Parameters: 5-parameter monitoring: ECG (3/5 lead), , NIBP, RESP, TEMP, and Pulse Rate.
Advanced Analysis: Includes arrhythmia analysis, ST segment monitoring, and pacemaker detection.
Capacity: 168-hour trend data storage and review.
Alarm System: Audio-visual-vocal alarm system.
Portability & Power: Compact, lightweight design with built-in rechargeable battery.

Advanced Clinical Monitoring Capabilities

With selectable 3-lead or 5-lead ECG modes, broad SpO2 and NIBP ranges, and support for adults, children, and neonates, this patient monitor adapts to diverse clinical demands. Its automatic operation and high measurement accuracy provide reliable assessments round the clock.

User-Friendly Design and Portability

The monitor's lightweight structure (3.5 kg), integrated bedside mounting, and portable handle make it easy to relocate across patient care areas. Multilingual interface and large, high-resolution display simplify operation, while adjustable alarms deliver clear notifications for timely response.

Extensive Data Management and Connectivity

With up to 120 hours of full disclosure trend storage, this monitor supports long-term data management. It offers practical connectivity via USB, LAN, and an optional printer, enabling streamlined data transfer and documentation essential for clinicians and caregivers.

FAQ's of Patient Monitor:

Q: How does the monitor accommodate different patient categories?

A: The device is designed to support adults, pediatric, and neonatal patients, allowing clinicians to select the appropriate modes and measurement ranges for accurate and safe vital sign monitoring in intensive care, emergency, or general clinical settings.

Q: What is the process for switching between ECG lead modes?

A: Users can easily select between 3-lead or 5-lead ECG modes through the intuitive on-screen menu. This flexibility ensures suitability for basic arrhythmia analysis or more detailed cardiac monitoring as needed.

Q: Where can this monitor be used effectively?

A: Its robust, portable design makes it ideal for hospitals, clinics, intensive care units, operation rooms, and emergency departments. The monitor's AC and battery operation with a convenient handle ensures reliable use at the bedside or during patient transfers.

Q: What are the main benefits of the built-in alarm system?

A: The fully adjustable visual and audible alarm system notifies caregivers instantly about abnormal vital signs, improving patient safety by allowing for prompt intervention. Alarm thresholds can be tailored to individual patient needs.

Q: How long does the rechargeable battery last during operation?

A: The high-capacity lithium-ion battery provides up to 4 hours of continuous monitoring, ensuring uninterrupted operation during power outages or patient mobility within medical facilities.

Q: What data storage and connectivity options are available?

A: The monitor features up to 120 hours of trend data storage and offers USB and LAN ports for data transfer. An optional built-in printer is also available for instant printouts of critical readings and patient reports.
